Shutter Door Guide Roll Forming Machine

    Unit Price: USD 9500 / Set/Sets
    Payment Type: L/C,T/T,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
Basic Info

Model No.: KYT

Tile Type: Colored Steel

Certification: CE, ISO

Condition: New

Customized: Customized

Usage: Roof, Wall, Other

Transmission Method: Machinery

Place Of Origin: China

After-sales Service Provided: Engineers Available To Debug The Machine Overseas

Brand: KYT

Warranty: 24 Months

RAW MATERIAL: Colored Steel Sheet,galvanized Steel Sheet

Control System: PLC

Cutting Type: Hydraulic

Voltage: As Your Required

Production Capacity: 8-15meter/min

Thickness Of Raw Material: 0.3-0.8mm

Additional Info

Packaging: Seaworthy packing

Productivity: 30 sets per month

Brand: KAIYITE

Transportation: Ocean

Place of Origin: China

Supply Ability: 30 sets per month

Certificate: ISO9000

HS Code: 84552210

Port: Tianjin,Shanghai

Product Description

Shutter Door Guide Roll Forming Machine

In order to make the rollers of the shutter door guide roll forming machine more stronger and the cutter more harder, the material of all the rollers and cutter is Cr12 , quenched 58-62 degree.

The punching mould works automatically , It is controlled by oil punch station .

If you want a high speed machine , we can add servo motor for you . The speed can reach 25-30 m /min


working flow

Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand

process-flow

product feature

1. Roll shutter door forming machine can prevent rainwater infiltrated
2. Fire resistance rolling shutter door also have function of fireproof
3. High efficiency, energy saving, can be used continuously
4. Roll shutter door forming machine use PLC and inverter controller
5. The straightening device of this Roller Shutter Door Roll Forming Machine can be adjusted to decrease phenomenon caused in the process of roll forming.

product overview

You can check our machine over all. Not only beautiful in the surface but also good quality.
Slide Machine

c8e9b39496952b6d9be19cfd0a

Technical parameters:

Processing material: colored steel plate, galvanized plate, or aluminium plate

Material thickness : 1.2 ---1.8mm

Diameter of shaft : 75 mm

Roller Station : 10 - 15 steps

Sidewall Thickness : 14 mm

Main frame :400 H steel

Motor Power : 4 + 3 kw

Forming speed : 10 - 20m/min

detailed photos

In order to help you know our machine much better. The following is the detailed pictures of the machine.

Hydraulic cutting system Material of blades: Cr12, quenching treatment.

guaid rail machine

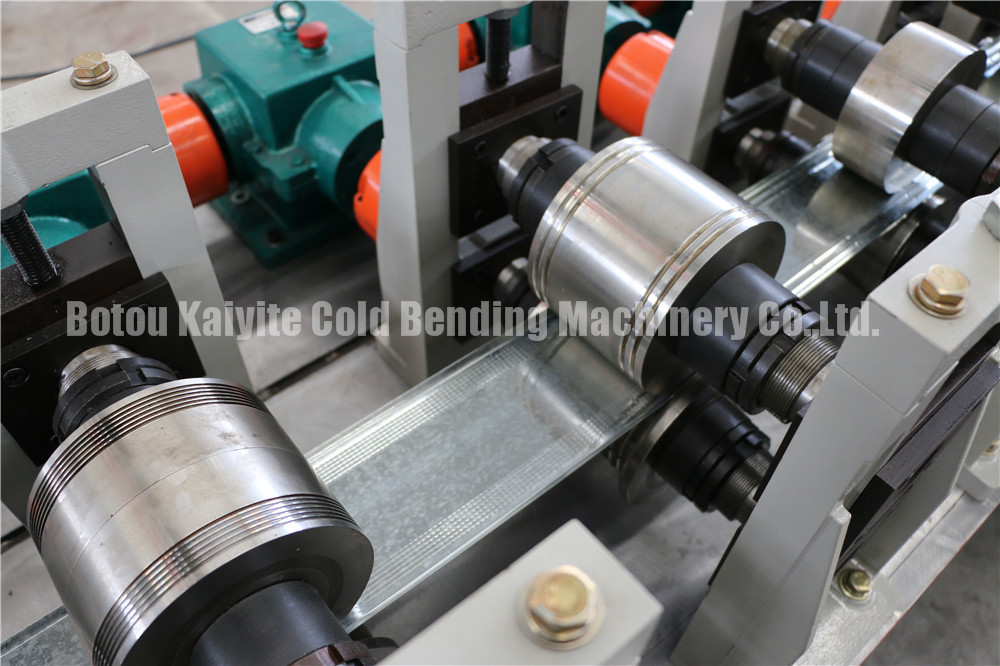

Forming rollers Specification: 45# steel, CNC Lathes, heat treated Feature: hard chrome plating, 0.05 mm

Stud Roll Former


C Purlin Application

The products produced by hydraulic cutting shutter door machine are bright in colored, against fading, resistant to rust, and be widely used in shops, working departments, warehouses, and fire partition. Its strength is three times higher than aluminum alloy door.

application of the shutter door machine

component specificaiton

Manual uncoiler

It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler

is 5 ton, and it is capable for most of the coils.

Decoiler

Feeding

Receiving the raw material , it guarantees the products are neat, parallel and everything is uniformity.

slide machine

Electrical control cabinet

PLC is adopted to organize all action of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes:Automatic and manual. By automatic mode, the machine can realize fully automatic working .

Plc Control Box

Hydraulic system

It is drived by a gear pump. After filling the hydraulic oil into the hydraulic oil tank , the pump could drive the hydraulic cylinder to realize the cutting function .

The system includes a set of hydraulic tank , a set of a gear pump , two hydraulic pipes and two sets of solenoid valves .Hydraulic oil : 40#


Hydraulic Pump

2

A. For this machine need 1*40 GP container to load, one container can load 2 sets machines normally.
B. Make some protection on the machine. We will make the plastic package on the easy damage parts, paint the oil on the roller and shaft .
C. we will fix all the parts into container by steel wire rope. And ensure the machine will not damage when shaking on sea.
D. we will take phoots and videos for customer when loading to container, so that the customer can take out the machine easily when receive the goods

Packing And Shipping

foreign customer

Customers satisfaction is our pursuit! Let us roll the world,form the future and build a dream together!

Client 1

Factory Show


Kaiyite machinery is a leading manufacture of roll forming machine . We know well the particular requirements for the customers from different countries , and have an outstanding export team who will take your requests . Our experts and skilled workers complete the work with great precision .

We provide an extensive line of products , including roller Shutter Door Roll Forming Machine , Door Frame Machine , Roof And Wall Panel Roll Forming Machine , Double Layer Roll Forming Machine , Floor Deck Roll Forming Machine ,C / Z / U Purlin Roll Forming Machine , Stud And Track Roll Forming Machine , Ridge Cap Roll Forming Machine , Downspout Pipe Roll Forming Machine , Shearing Machine And Bending Machine , Slitting And Cutting Machine .


Company Picture

Looking for ideal Guide Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Shutter Door Guide Roll Forming Machine are quality guaranteed. We are China Origin Factory of Roll Forming Machine For U Guide. If you have any question, please feel free to contact us.
