L Angle Light Steel Keel Roll Forming Machinery

    Unit Price: USD 9500 / Set/Sets
    Payment Type: L/C,T/T,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
Basic Info

Model No.: KYT

Tile Type: Colored Steel

Certification: SGS, CE, ISO

Condition: New

Customized: Customized

Usage: Roof, Wall, Floor, Other

Transmission Method: Electric

Place Of Origin: China

After-sales Service Provided: Engineers Available To Debug The Machine Overseas

Brand: KYT

Warranty: 24 Months

RAW MATERIAL: Colored Steel Sheet,galvanized Steel Sheet

Control System: PLC

Cutting Type: Hydraulic

Voltage: As Your Required

Production Capacity: 25-35meter/min

Thickness Of Raw Material: 0.6-1.2mm

Additional Info

Packaging: Seaworthy packing

Productivity: 30 sets per month

Brand: KAIYITE

Transportation: Ocean

Place of Origin: China

Supply Ability: 30 sets per month

Certificate: ISO9000

HS Code: 84552210

Port: Tianjin,Shanghai

Product Description

L Angle Light Steel Keel Roll Forming Machinery

Now with the advanced of new technology , Our L angel light steel keel roll forming machinery can make several size of the L angle .

So it can save space and save cost for our client . If you want to get several different size by only one machine , you can send drawings or sample to us . We can design the machine for you accordingly .

working flow

Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand

process-flow

product overview

Metal Steel Stud And Track Machine

light keel profile

stud and track profile

Raw Material

A. Suitable Material: Colored Steel Plate, Galvanized Board, Aluminum Plate; B. Thickness: 0.7mm - 1.2mm;

Main Body

A. Roller station: 14 Stations; B. Diameter of shaft: ¢50mm, 45# steel;

C. Roller material: 45# steel; D. Frame: 350 H steel;

E. Working speed: 25 - 35 m/min;

Power

A. Motor power:5.5 Kw, Hydraulic power: 3 Kw;

B. Voltage: 380V 50Hz 3Phases or Customization;

C. Driving way: By Chain

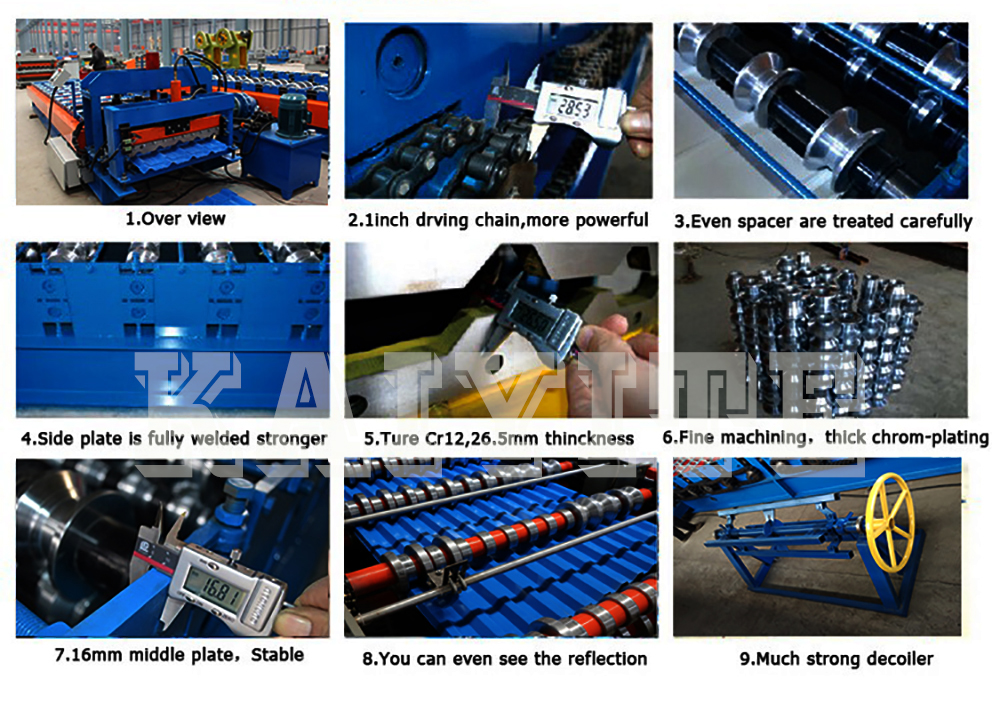

detailed photos

Hydraulic system : Material of blades: Cr12, quenching treatment.

L Angle Roll Forming Machinery

Forming rollers Specification: 45# steel, CNC Lathes, heat treated Feature: hard chrome plating, 0.05 mm

L Angle Furring Machine

Main frame specification: 350 H steel . feature: More stable, no shaking

L Angle Light Keel Roll Forming Machine

component specificaiton

Manual uncoiler

It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler

is 5 ton, and it is capable for most of the coils .

decoiler

Feeding

Receiving the raw material , it guarantees the products are neat, parallel and everything is uniformity .

stud and track roll forming machinery

Electrical control cabinet

PLC is adopted to organize all action of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes:Automatic and manual. By automatic mode, the machine can realize fully automatic working .

plc control box

Hydraulic system

It is drived by a gear pump. After filling the hydraulic oil into the hydraulic oil tank , the pump could drive the hydraulic cylinder to realize the cutting function .

The system includes a set of hydraulic tank , a set of a gear pump , two hydraulic pipes and two sets of solenoid valves .

hydraulic pump

Output table

It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. OUTPUT TABLE

C Purlin Application

application of the stud and track

production process

roll forming machine

Quality Inspection

Machine Quality Inspection

Packing And Shipping

A. For this machine need 1*40 GP container to load , one container can load 2 sets machines normally .
B. We will make the plastic package on the easy damage parts, paint the oil on the roller and shaft .
C. we will fix all the parts into container by steel wire rope .
D. we will take photos and videos for customer when loading to container , so that the customer can take out the machine easily when receive the goods .

Packing And Shipping

foreign customer

Client 1

Factory Show

Kaiyite machinery is a leading manufacture of roll forming machine . We know well the particular requirements for the customers from different countries , and have an outstanding export team who will take your requests . Our experts and skilled workers complete the work with great precision .

We provide an extensive line of products , including Roller Shutter Door Roll Forming Machine , Door Frame Machine , Roof And Wall Panel Roll Forming Machine , Double Layer Roll Forming Machine ,Floor Deck Roll Forming Machine ,C / Z / U Purlin Roll Forming Machine , Stud And Track Roll Forming Machine , Ridge Cap Roll Forming Machine , Downspout Pipe Roll Forming Machine , Shearing Machine And Bending Machine , Slitting And Cutting Machine .
