Light Steel Truss Stud and Track Machine

  • $9500
    ≥1
    Set/Sets
Payment Type:
L/C,T/T,Money Gram,Western Union
Incoterm:
FOB,CFR,CIF
Min. Order:
1 Set/Sets
Delivery Time:
30 Days
Transportation:
Ocean,Land,Air
Port:
Tianjin Port,Shanghai Port
Share:
Chat Now
  • Product Description
Overview
Product Attributes

Model No.KYT20-50-135

BrandKAIYITE

Place Of OriginChina

Control SystemPLC

Warranty24 Months

CertificationISO

UsageOther

Tile TypeColored Steel

ConditionNew

CustomizedCustomized

Transmission MethodElectric

After-sales Service ProvidedEngineers Available To Debug The Machine Overseas

BrandKYT

RAW MATERIALColored Steel Sheet,galvanized Steel Sheet

VoltageAs Your Required

Thickness Of Raw Material0.4-0.5mm

Cutting TypeNo Stop Hydraulic Cutting

Production Capacity45meter/min

Supply Ability & Additional Informations

PackagingSeaworthy packing

Productivity30 sets per month

TransportationOcean,Land,Air

Place of OriginChina

Supply Ability30 sets per month

CertificateISO9001

HS Code84552210

PortTianjin Port,Shanghai Port

Payment TypeL/C,T/T,Money Gram,Western Union

IncotermFOB,CFR,CIF

Delivery Time30 Days

Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
Seaworthy packing

Light Steel Truss Stud and Track Machine

Light steel keel produced by the Light Steel Truss Stud and Track Machine consists U-shaped, C-type, T-type, L-type and other shapes . Usually u type and c type can be as the main keel , C as a cross-keel card access , T light keel is as the side keel . So when you using the stud and track panel sheet , you can choose it according to your detailed requirement .

metal light keel stud roll forming machine manufacturer

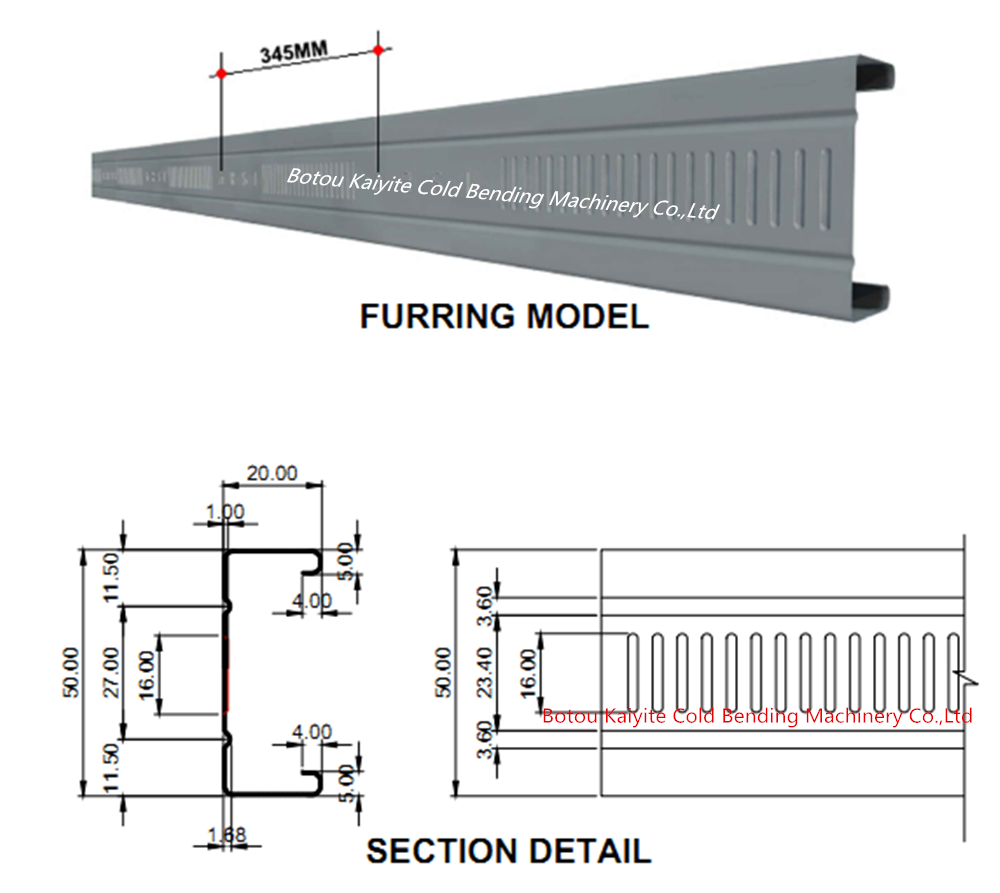

Profile Picture

Drywall Galvanized Light keel

Detail Parameter of Machine

* Suitable Material : Colored Steel Plate , Galvanized Board , Aluminum Plate ;

* Thickness : 0.4mm - 0.5mm ; *Width of material : 135mm ;

* Roller station : 10 Stations ; * Diameter of shaft : ¢40mm, 45# steel ;

* Roller material : 45# steel ; * Main body frame: 350 H steel ;

* Working speed : 45 m/min ; * Size : 5300*700*9000mm

* Motor power : 5.5 Kw , Hydraulic power : 3 Kw ;

* Voltage: 380V 50Hz 3Phases or Customization ;

* Driving way : By chain or gear

Working Flow

Decoiling the sheet → Sheet guiding → Roll forming → Measure length → Cutting the panel → Panels to product stand

process-flow

Other type of stud and truck Pictures

light steel keel galvanized sheet

High speed metal stud and track roll forming machine

Metal Stud and Track Roll Forming Machine for Light Weight Steel Truss

Application

application of the stud and track

Company Information


Kaiyite machinery is a leading manufacture of roll forming machine . We know well the particular requirements for the customers from different countries , and have an outstanding export team who will take your requests . Our experts and skilled workers complete the work with great precision .

We provide an extensive line of products , including Roller Shutter Door Roll Forming Machine ,Door Frame Machine, Roof And Wall Panel Roll Forming Machine , Double Layer Roll Forming Machine ,Floor Deck Roll Forming Machine ,C / Z / U Purlin Roll Forming Machine , Stud And Track Roll Forming Machine , Ridge Cap Roll Forming Machine , Downspout Pipe Roll Forming Machine , Shearing Machine and Bending Machine , slitting and Cutting Machine .
