Botou Kaiyite Cold Bending Machinery Co.,Ltd.


Home > Products > Stud And Track Roll Forming Machine > Ceiling Channel Roll Forming Machine > Omega Profile Light Gauge Roll Forming Machine

Omega Profile Light Gauge Roll Forming Machine

  • $9500
Payment Type:
L/C,T/T,Money Gram,Western Union
Min. Order:
1 Set/Sets
Delivery Time:
30 Days
Tianjin Port,Shanghai Port
Chat Now
  • Product Description
Product Attributes

Model No.KYT


Cutting TypeHydraulic Cutting

Place Of OriginChina

Control SystemPLC

Warranty18 Months



Tile TypeColored Steel



Transmission MethodElectric

After-sales Service ProvidedEngineers Available To Debug The Machine Overseas


RAW MATERIALColored Steel Sheet,galvanized Steel Sheet

VoltageAs Your Required

Thickness Of Raw Material0.8-1.0mm

Supply Ability & Additional Informations

PackagingSeaworthy packing

Productivity30 sets per month


Place of OriginChina

Supply Ability30 sets per month


HS Code84552210

PortTianjin Port,Shanghai Port

Payment TypeL/C,T/T,Money Gram,Western Union


Delivery Time30 Days

Packaging & Delivery
Selling Units:
Package Type:
Seaworthy packing

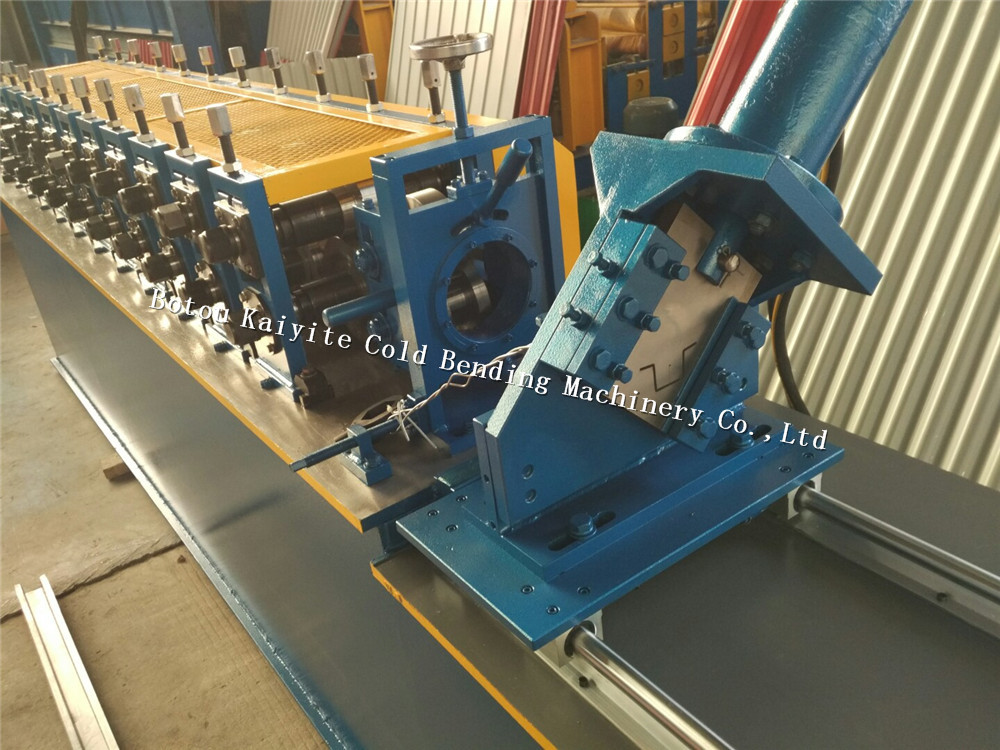

Omega Profile Light Gauge Roll Forming Machine

Ceiling Steel Furring Channel Making Machine

Omega profile truss produced by the Omega Profile Light Gauge Roll Forming Machine . This Omega profile truss usually work with U-shaped, C-type, T-type, L-type and other shapes together . Usually u type omega profile and c type can be as the main keel , C as a cross-keel card access , T light keel is as the side keel . So when you using the stud and track panel sheet , you can choose it according to your detailed requirement .

Profile Picture

Hat purlin profile cold roll forming

Detail Parameter of Machine

* Suitable Material : Colored Steel Plate , Galvanized Board , Aluminum Plate ;

* Thickness : 0.4mm - 0.5mm ; *Width of material : 135mm ;

* Roller station : 11 Stations ; * Diameter of shaft : ¢50mm, 45# steel ;

* Roller material : 45# steel ; * Main body frame: 350 H steel ;

* Working speed : 25 m/min ; * Size : 5800*700*900mm

* Motor power : 5.5 Kw , Hydraulic power : 4 Kw ;

* Voltage: 380V 50Hz 3Phases or Customization ;

* Driving way : By chain or gear

Working Flow

Decoiling the sheet → Sheet guiding → Roll forming → Measure length → Cutting the panel → Panels to product stand


Other type of stud and truck Pictures

light steel keel galvanized sheet

High speed metal stud and track roll forming machine

Metal Stud and Track Roll Forming Machine for Light Weight Steel Truss

Company Information

Kaiyite machinery is a leading manufacture of roll forming machine . We know well the particular requirements for the customers from different countries , and have an outstanding export team who will take your requests . Our experts and skilled workers complete the work with great precision .

We provide an extensive line of products , including Roller Shutter Door Roll Forming Machine ,Door Frame Machine, Roof And Wall Panel Roll Forming Machine , Double Layer Roll Forming Machine ,Floor Deck Roll Forming Machine ,C / Z / U Purlin Roll Forming Machine , Stud And Track Roll Forming Machine , Ridge Cap Roll Forming Machine , Downspout Pipe Roll Forming Machine , Shearing Machine and Bending Machine , slitting and Cutting Machine .

Factory Of Roll Forming Machine

Looking for ideal Omega Profile Light Gauge Steel Frame Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Truss Furring Forming Machine are quality guaranteed. We are China Origin Factory of Hat Profile Purlin Machine. If you have any question, please feel free to contact us.
