Botou Kaiyite Cold Bending Machinery Co.,Ltd.

Products

Home > Products > Floor Deck Roll Forming Machine > Building Construction Floor Deck Forming Machine

PRODUCT CATEGORIES

Building Construction Floor Deck Forming Machine
Building Construction Floor Deck Forming Machine
Building Construction Floor Deck Forming Machine
Building Construction Floor Deck Forming Machine
Building Construction Floor Deck Forming Machine

Building Construction Floor Deck Forming Machine

Payment Type: L/C,T/T,Money Gram,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Basic Info

    Model No.: KYT

    Tile Type: Colored Steel

    Certification: CE, ISO

    Condition: New

    Customized: Customized

    Usage: Roof, Wall

    Transmission Method: Machinery

    Place Of Origin: China

    After-sales Service Provided: Engineers Available To Debug The Machine Overseas

    Brand: KYT

    Warranty: 24 Months

    RAW MATERIAL: Colored Steel Sheet,galvanized Steel Sheet

    Thickness Of Raw Material: 0.3-0.6mm

    Control System: PLC

    Cutting Type: Hydraulic

    Voltage: As Your Required

    Production Capacity: 8-15meter/min

Additional Info

    Packaging: Seaworthy packing

    Productivity: 30 sets per month

    Brand: KAIYITE

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 30 sets per month

    Certificate: ISO9000

    HS Code: 8455221000

    Port: Tianjin Port,Shanghai Port

Product Description

Building Construction Floor Deck Forming Machine

This floor deck panel produced by Building Construction Floor Deck Forming Machine has high wave , high strength. It is set up with concrete, which has good adhesiveness. It not only saves plenty of temporary mold , but also saves the amount of the concrete . Also the panel sheet reduce the permanent load of the structure . Therefore , steel quantity of the whole project is decreased and can save money surely.

working flow

Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand

process-flow

product feature

Minimal maintenance

High efficiency

Reliable working

Low energy consumption

Durable Technical

product overview

You can check our machine over all. Not only beautiful in the surface but also good quality.

metal deck roll forming machine

steel decking roll forming machine

Technical parameters:

Material Specification : colored steel sheet , galvanized steel sheet.
Thickness of coil sheet :0.8-1.2mm

Forming speed : 25 meter / min

Hydraulic pressure :58MPA

Hydraulic station power : 4kw

Main motor power : 4kw

Voltage : 380V 3phases 50Hz or at buyers requirement

Controlling system : PLC

detailed photos

In order to help you know our machine much better. The following is the detailed pictures of the machine.

Hydraulic cutting system

floor deck roll forming machine

Forming rollers

Specification: 45# steel, CNC Lathes, heat treated
Feature: hard chrome plating, 0.05 mm

roll forming machine

production process

The following picture shows the whole production process of the roll forming machine.

roll forming machine

component specificaiton

Manual uncoiler

It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 5 ton, and it is capable for most of the coils. This equipemtn is suitable to process the steel coil.

Manual Decoiler

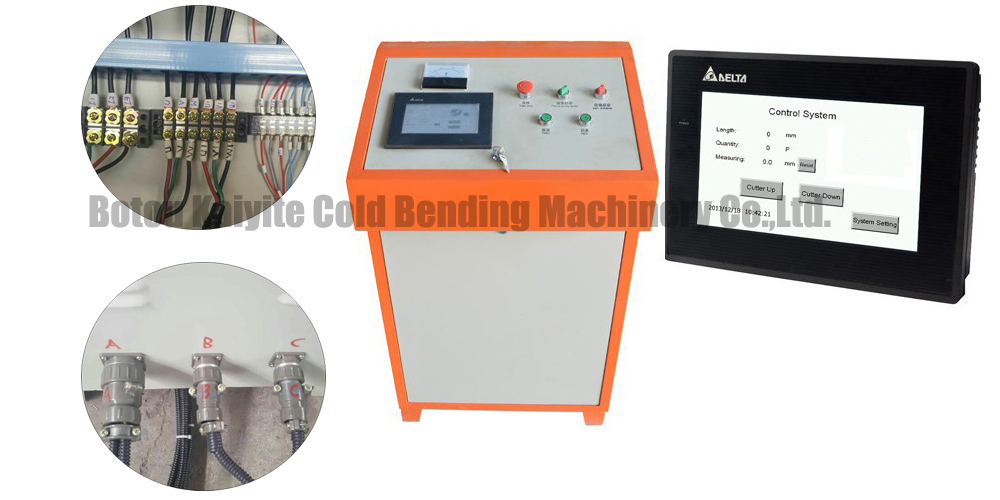

Electrical control cabinet

PLC is adopted to organize all action of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes:Automatic and manual. By automatic mode, the machine can realize fully automatic working .

Plc Control Box

Hydraulic system

Hydraulic Pump

Output Table

Output Table

Company information

Kaiyite machinery is a leading manufacture of roll forming machine . We know well the particular requirements for the customers from different countries , and have an outstanding export team who will take your requests . Our experts and skilled workers complete the work with great precision .

We provide an extensive line of products , including Roller Shutter Door Roll Forming Machine , Door Frame Machine , Roof And Wall Panel Roll Forming Machine , Double Layer Roll Forming Machine ,Floor Deck Roll Forming Machine ,C / Z / U Purlin Roll Forming Machine , Stud And Track Roll Forming Machine , Ridge Cap Roll Forming Machine , Downspout Pipe Roll Forming Machine , Shearing Machine And Bending Machine , Slitting And Cutting Machine .

Factory Of Roll Forming Machine

foreign customer

Welcome to visit our factory. The following is the route to come to our factory.

1.Fly to Beijing airport: By high speed train From Beijing south station to Cangzhou west (1 hour),then we can pick up you.

2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou west(4.5 hours),then we can pick up you.

3.Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing south station to Cangzhou west (1 hour),then we can pick up you
