Metal Sheet Floor Deck Roll Forming Machine

Payment Type: L/C,T/T,Money Gram,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Basic Info

    Model No.: KYT

    Tile Type: Colored Steel

    Certification: SGS, CE, ISO

    Condition: New

    Customized: Customized

    Usage: Roof

    Transmission Method: Hydraulic Pressure

    Place Of Origin: China

    After-sales Service Provided: Engineers Available To Debug The Machine Overseas

    Brand: KYT

    Warranty: 24 Months

    RAW MATERIAL: Colored Steel Sheet,galvanized Steel Sheet

    Thickness Of Raw Material: 0.3-0.6mm

    Control System: PLC

    Cutting Type: Hydraulic

    Voltage: As Your Required

    Production Capacity: 8-15meter/min

Additional Info

    Packaging: Seaworthy packing

    Productivity: 30 sets per month

    Brand: KAIYITE

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 30 sets per month

    Certificate: ISO9000

    HS Code: 84552210

    Port: Tianjin,Shanghai

Product Description

Metal Sheet Floor Deck Roll Forming Machine

The steel structure floor deck panel produced by this floor deck roll forming machine is a building material with smooth and beautiful surface.It has features of high strength, light weight and high bearing capacity.The panel can reduce the amount of concrete and replace traditional template, so it also can save the cost of the project.

The floor panel is easy to transport and install,so it save a lot of labor.It is meaningful for the high building and earthquake areas because it can reduce the permanent load of the structure.

working flow

Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand

process-flow

product feature

Minimal maintenance

high efficiency

reliable working

low energy consumption

Durable Technical

product overview

You can check our machine over all. Not only beautiful in the surface but also good quality.

metal deck roll forming machine

steel decking roll forming machine

Technical parameters:

Material Specification : colored steel sheet , galvanized steel sheet.
Thickness of coil sheet :0.8-1.2mm

Forming speed : 25 meter / min

Hydraulic pressure :58MPA

Hydraulic station power : 4kw

Main motor power : 4kw

Voltage : 380V 3phases 50Hz or at buyers requirement

Controlling system : PLC

detailed photos

In order to help you know our machine much better. The following is the detailed pictures of the machine.

Hydraulic cutting system

floor deck roll forming machine

Forming rollers

Specification: 45# steel, CNC Lathes, heat treated
Feature: hard chrome plating, 0.05 mm

floor deck machine

Main frame

specification: 350 H steel.
feature: More stable, no shaking

metal floor deck roll forming machine

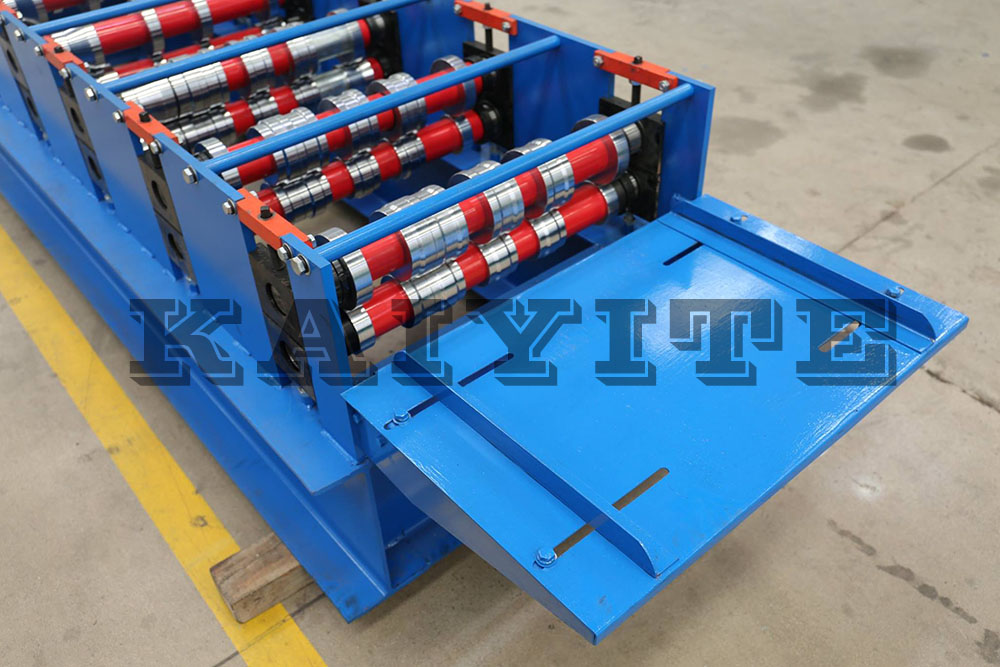

Guide device

It is used to control the width and position of the steel sheet.

The sheet is guided into the machine with correct position, to make sure the panel is neat and parallel.

floor deck making machine

component specificaiton

Manual uncoiler

It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 5 ton, and it is capable for most of the coils. This equipemtn is suitable to process the steel coil.

Manual Decoiler

Electrical control cabinet

PLC is adopted to organize all action of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes:Automatic and manual. By automatic mode, the machine can realize fully automatic working .

Plc Control Box


Hydraulic system

Hydraulic Pump

Output Table

Output Table

c purlin application


Panels produced by this machine are mainly used as the floor decking in Russia. It has features of high wave, high strength, high degree automatically producing, lower cost and so on. This panel is set up with concrete, which has good adhesiveness. This not only can save steel moulding plate, but also can decrease the load capacity of floor decking. Therefore, steel quantity of the whole project is decreased and can save money surely.


application of the floor deck

Company information

Kaiyite machinery is a leading manufacture of roll forming machine . We know well the particular requirements for the customers from different countries , and have an outstanding export team who will take your requests . Our experts and skilled workers complete the work with great precision .

We provide an extensive line of products , including Roller Shutter Door Roll Forming Machine , Door Frame Machine , Roof And Wall Panel Roll Forming Machine , Double Layer Roll Forming Machine ,floor deck roll forming machine ,C / Z / U Purlin Roll Forming Machine , Stud And Track Roll Forming Machine , Ridge Cap Roll Forming Machine , Downspout Pipe Roll Forming Machine , Shearing Machine And Bending Machine , Slitting And Cutting Machine .

Factory Of Roll Forming Machine

foreign customer

Customers satisfaction is our pursuit. They are not only clients but also friends to us.

Our company export the roll forming machine, delivery hope to the clients all over the world.

Let us roll the world,form the future and build a dream together.We are waiting for you in China.
