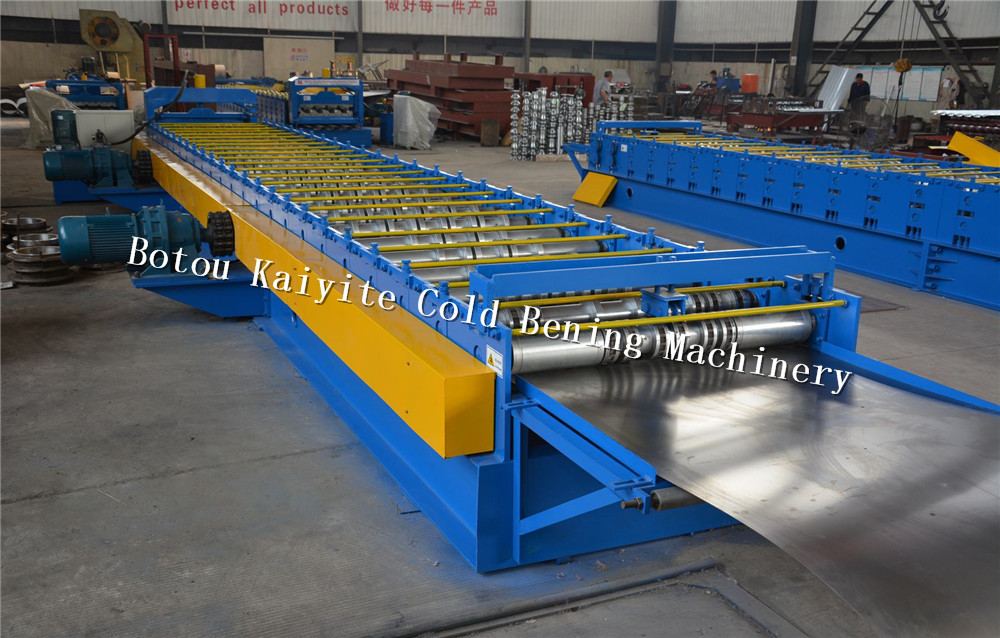

Galvanized Roof Sheet Floor Deck Making Machine

Payment Type:
L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:
FOB,CFR,CIF
Min. Order:
1 Set/Sets
Delivery Time:
30 Days
Transportation:
Ocean
Port:
Tianjin Port,Shanghai Port
Share:
Chat Now
  • Product Description
Overview
Product Attributes

Model No.KYT55-100-900

BrandKAIYITE

Control SystemPLC

Warranty24 Months

Place Of OriginChina(Mainland)

CertificationOther

UsageFloor

Tile TypeColored Steel

ConditionNew

CustomizedCustomized

Transmission MethodElectric

After-sales Service ProvidedEngineers Available To Debug The Machine Overseas

RAW MATERIALColored Steel Sheet,galvanized Steel Sheet

Cutting TypeHydraulic

VoltageAs Your Required

Production Capacity8-10meter/min

Thickness Of Raw Material0.8-1.2mm

Roll Stations22 Stations

Supply Ability & Additional Informations

PackagingSeaworthy packing

Productivity30 sets per month

TransportationOcean

Place of OriginChina

Supply Ability30 sets per month

CertificateISO9000

HS Code8455221000

PortTianjin Port,Shanghai Port

Payment TypeL/C,T/T,D/P,Paypal,Money Gram,Western Union

IncotermFOB,CFR,CIF

Delivery Time30 Days

Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
Seaworthy packing

Galvanized Roof Sheet Floor Tile Making Machine

Our company has a quality department , their responsibility is to test the quality of the galvanized roof sheet floor tile making machine from laying off the raw material , processing the rollers and other parts ,after assembling the machine , they will test it again and again until it works without any tidy problem .

working flow

Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand

process-flow

product feature

Galvanized Roof Sheet Floor Tile Making Machine

Minimal maintenance

high efficiency

reliable working

low energy consumption

Durable Technical

Technical parameters:

Material Specification : colored steel sheet , galvanized steel sheet.
Thickness of coil sheet :0.8-1.2mm

Forming speed : 8-10 meter / min

Hydraulic station power : 15kw

Main motor power : 5.5kw

Diameter of Shaft : 90mm

Voltage : 380V 3phases 50Hz or at buyers requirement

Controlling system : PLC

detailed photos

In order to help you know our machine much better. The following is the detailed pictures of the machine

Hydraulic cutting system : it is fully automatic and easy to operate .

floor deck metal cold roll forming machine

Forming rollers

Specification: 45# steel, CNC Lathes, heat treated
Feature: hard chrome plating, 0.05 mm

floor deck roll forming machine for the structural concrete


Guide device

It is used to control the width and position of the steel sheet.

The sheet is guided into the machine with correct position, to make sure the panel is neat and parallel.

galvanized floor decking roll forming machine

Main frame

specification: 350 H steel.
feature: More stable, no shaking

Galvanized Steel Floor Tile Decking Roof Sheet Roll Forming Machine Making line equipment

production process

The following picture shows the whole production process of the roll forming machine.

roll forming machine

component specificaiton

Manual uncoiler

It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 5 ton, and it is capable for most of the coils. This equipemtn is suitable to process the steel coil.

Manual Decoiler for machine

Electrical control cabinet

PLC is adopted to organize all action of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes:Automatic and manual. By automatic mode, the machine can realize fully automatic working .

control system

Hydraulic system

hydraulic system

Company information

Kaiyite machinery is a leading manufacture of roll forming machine . We know well the particular requirements for the customers from different countries , and have an outstanding export team who will take your requests . Our experts and skilled workers complete the work with great precision .

We provide an extensive line of products , including Roller Shutter Door Roll Forming Machine ,Door Frame Machine, Roof And Wall Panel Roll Forming Machine , Double Layer Roll Forming Machine ,Floor Deck Roll Forming Machine ,C / Z / U Purlin Roll Forming Machine , Stud And Track Roll Forming Machine , Ridge Cap Roll Forming Machine , Downspout Pipe Roll Forming Machine , Shearing Machine and Bending Machine , slitting and Cutting Machine .

Factory Of Roll Forming Machine

Looking for ideal Roof Sheet Floor Deck Making Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Galvanized Floor Deck Making Machine are quality guaranteed. We are China Origin Factory of Galvanized Roof Sheet Deck Making Machine. If you have any question, please feel free to contact us.
